GE Masoneilan Valve Instrumentation
Update: 2017/4/28 View:
- Brand: Masoneilan
- Type: Valve Instrumentation
Introduction
GE offers a variety of valve instrumentation suitable for a wide range of applications. The portfolio includes Electro-Pneumatic Transducer, air filter regulators, Booster Relays and Electric Rotary Switches.
Valve Instrumentation Product Series
| Product Name |

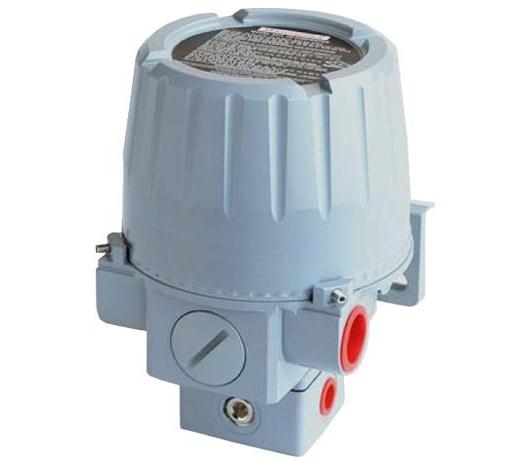

Masoneilan Model 4411 Electro-Pneumatic Transducer
|
Air Filter Regulators / Air Sets
|
Becker Valve Regulator Pilot
|
Model BR200 / BR400 Booster Relays
|
496 Series Electric Rotary Switches
|
| Ratings | Explosion proof and intrinsically safe enclosure rating per IP 66 and NEMA X | 210 psi (15 bar) maximum | Housing meets NEMA 3 classification | - | Rating: -10 amps @ 300 Volts A.C. -0.6 amps @ 24/30 Volts D.C. Hazardous Area Certifications: ATEX, FM and CSA approvals |
| Temperature | Temperature Affect: < 0.035% span/ C (-40C to 85C) | Ambient Temperature Range: -40°C to +83°C (-40°F to +182°F) Low Temperature: -50ºC to +60ºC (-58ºF to +140ºF) High Temperature: 0ºC to +100ºC (+32ºF to +212ºF | Operative ambient temperature range: -20°F – 160°F (-29°C – 71°C) | Ambient Temperature Range: -30°C to +100°C (-22°F to +212°F) optional: -55°C to +100°C (-43°F to +212°F) | Temperature range: -65oF to +180oF (-50oC to +80oC) |
| Application | The Masoneilan Model 4411 transducer is for use with pneumatic positioners in applications with temperature or vibration issues for valve-mounted instruments. | The Model 78 air filter regulators are a good choice for applications that require regulating process plant air to Various control valve pneumatic accessories. | The VRP Series is used for pressure control or on/off service in applications including gas production, processing, transmission, distribution systems, and more | Flow sensitivity adjustment allows optimization for improved efficiency and safer operation in key pneumatic control valve applications. | The Masoneilan 496 Series switches are configurable as electro-mechanical switches, proximity switches, or opto-electronic position transmitters. |
