Description

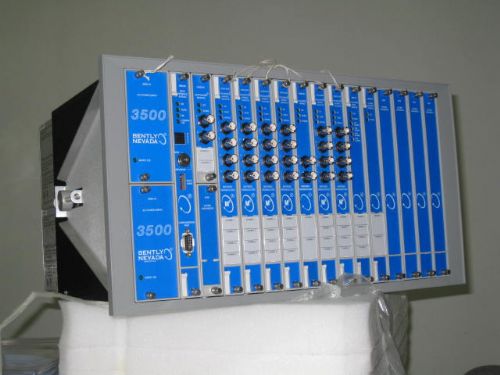

The 16-Channel Relay Module is a full-height module that provides 16 relay outputs. Any number of 16-Channel Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 16-Channel Relay Module can be independently programmed to perform needed voting logic.

Each relay utilized on the 16-Channel Relay Module includes "Alarm Drive Logic". Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. Users program this Alarm Drive using the 3500 Rack Configuration Software to meet the specific needs of the application.

Ordering Information
3500   16-Channel Relay Module 3500/33 -AXX-BXX
A:  Output Module
0 1 16-Channel Relay Output Module

B:  Agency Approval Option

0 0 None

0 1 CSA/NRTL/C (Class 1, Div 2)

0 2 ATEX/CSA (Class 1, Zone 2)

Spares 149986-01
Spare 16-Channel Relay Control Module
149992-01
Spare 16-Channel Relay Output Module
04425545
Grounding Wrist Strap (single use)
162291-01
16-Channel Relay Module Manual
00580453
Connector Header, Internal Termination, 16-position, Green
