VEGAPULS 61 Radar sensor
Update: 2016/5/17 View:
- Brand: VEGA
- Type: VEGAPULS 61
Introduction
VEGAPULS 61
Level measurement of liquids – the reliable solution for simple applications
- Exact measuring results independent of process conditions
- High plant availability, because wear and maintenance-free
- Maintenance-free operation through non-contact measuring principle
Measuring range - Distance
35 m
Measuring range - Pressure
-
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
Accuracy
± 2 mm
Version

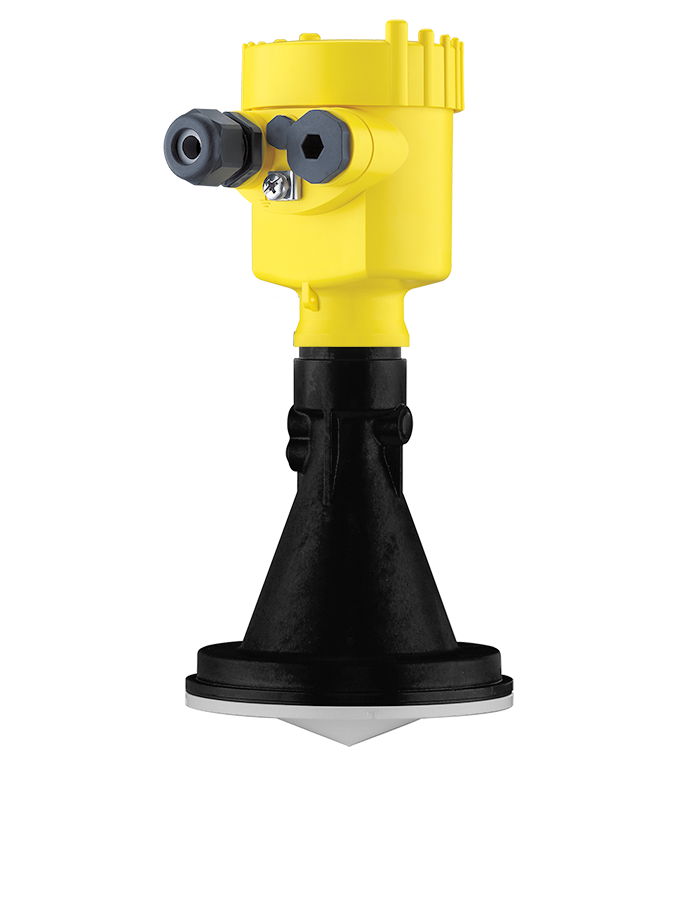

with plastic horn antenna ø 80 mm
encapsulated horn antenna
encapsulated horn antenna
Materials, wetted parts
PVDF
316L
PP
316L
PP
Threaded connection
G1½, 1½ NPT
Flange connection
≥ DN80, ≥ 3"
Hygenic fittings
Clamp ≥ 2", DN50 - DIN32676, ISO2852
Slotted nut ≥ 2", DN50 - DIN 11851
Slotted nut ≥ 2", DN50 - DIN 11851
Seal material
Seal material
Housing material
Plastic
Aluminium
StSt (precision casting)
StSt (electropolished)
Aluminium
StSt (precision casting)
StSt (electropolished)
Protection rating
IP66/IP68 (0.2 bar)
IP66/IP67
IP66/IP68 (1 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Profibus PA
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Modbus
Four-wire 4 … 20 mA/HART®
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Modbus
Four-wire 4 … 20 mA/HART®
Ambient temperature
-40 ... 80 °C
