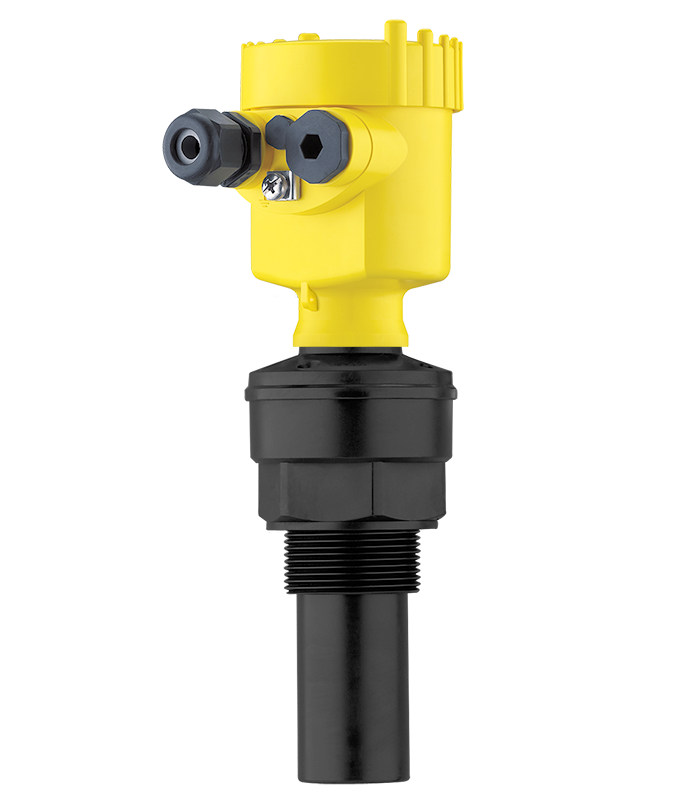

VEGASON 61 Ultrasonic sensor
Update: 2016/5/17 View:
- Brand: VEGA
- Type: VEGASON 61
Introduction
VEGASON 61
Ultrasonic sensor for continuous level measurement
Liquids and bulk solids in small vessels
- Price-favourable solution for simple applications
- Maintenance-free operation through non-contact measuring principle
- Reliable measurement independent of product features
Measuring range - Distance
5 m
Measuring range - Pressure
-
Process temperature
-40 ... 80 °C
Process pressure
-0.2 ... 2 bar
Accuracy
± 10 mm
Version
Version
Materials, wetted parts
PVDF
Threaded connection
≥ G1½, ≥ 1½ NPT
Hygenic fittings
Clamp ≥ 2", DN50 - DIN32676, ISO2852
Clamp ≥ 3", DN65 - DIN32676, ISO2852
Clamp ≥ 3½" , DN80 - DIN32676, ISO2852
Clamp ≥ 4" , DN100 - DIN32676, ISO2852
Slotted nut ≥ 3", DN65 - DIN 11851
Slotted nut ≥ 3½", ≥ DN80 - DIN 11851
Slotted nut ≥ 4", ≥ DN100 - DIN 11851
Clamp ≥ 3", DN65 - DIN32676, ISO2852
Clamp ≥ 3½" , DN80 - DIN32676, ISO2852
Clamp ≥ 4" , DN100 - DIN32676, ISO2852
Slotted nut ≥ 3", DN65 - DIN 11851
Slotted nut ≥ 3½", ≥ DN80 - DIN 11851
Slotted nut ≥ 4", ≥ DN100 - DIN 11851
Seal material
EPDM
FKM
FKM
Housing material
Plastic
Aluminium
StSt (precision casting)
StSt (electropolished)
Aluminium
StSt (precision casting)
StSt (electropolished)
Protection rating
IP66/IP68 (0.2 bar)
IP66/IP67
IP66/IP68 (1 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Profibus PA
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Four-wire 4 … 20 mA/HART®
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Four-wire 4 … 20 mA/HART®
Ambient temperature
-40 ... 80 °C
