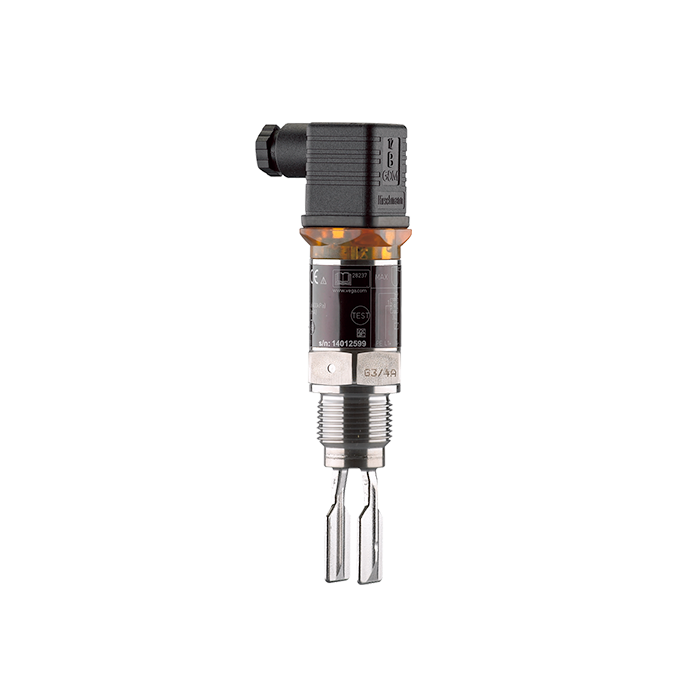

VEGASWING 51 Vibrating level switch for liquids
Update: 2016/5/14 View:
- Brand: VEGA
- Type:
Introduction
VEGASWING 51
Vibrating level switch for liquids
Liquids [density: > 0.5 … 2.5 g/cm³ (0.018 … 0.09 lbs/in³)]
- Precise and reliable function due to product-independent switching point
- Low maintenance costs
- Minimum time and cost expenditure thanks to simple setup without medium
Measuring range - Distance
-
Measuring range - Pressure
-
Process temperature
-40 ... 150 °C
Process pressure
-1 ... 64 bar
Version
Standard
Extended temperature range
Hygienic applications
Extended temperature range
Hygienic applications
Materials, wetted parts
316L
Threaded connection
≥ G½, ≥ ½ NPT
Hygenic fittings
Clamp ≥ 1" - DIN32676, ISO2852
Slotted nut ≥ DN25 - DIN 11851
hygienic fitting F40 with compression nut
SMS DN38
Slotted nut ≥ DN25 - DIN 11851
hygienic fitting F40 with compression nut
SMS DN38
Seal material
no media contact
Housing material
Plastic
Stainless steel
Stainless steel
Protection rating
IP67
IP 65
IP 68 (0.2 bar)
IP 65
IP 68 (0.2 bar)
Output
Contactless electronic switch
Transistor (NPN/PNP)
Transistor (NPN/PNP)
Ambient temperature
-40 ... 70 °C
