VEGAPULS WL61 Radar sensor
Update: 2016/5/14 View:
- Brand: VEGA
- Type:
Introduction
VEGAPULS WL61
Radar sensor for continuous level measurement of water and waste water
Level measurement of water and sewage
- Exact measuring results independent of product, process and ambient conditions
- High plant availability, because wear and maintenance-free
- Maintenance-free operation through non-contact measuring principle
Measuring range - Distance
15 m
Measuring range - Pressure
-
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 2 bar
Accuracy
± 2 mm
Version
with plastic horn antenna ø 80 mm
Materials, wetted parts
PP
Threaded connection
≥ G1½, ≥ 1½ NPT
Flange connection
≥ DN80, ≥ 3"
Housing material
Plastic
Protection rating
IP68 (2bar)
Output
Profibus PA
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Ambient temperature

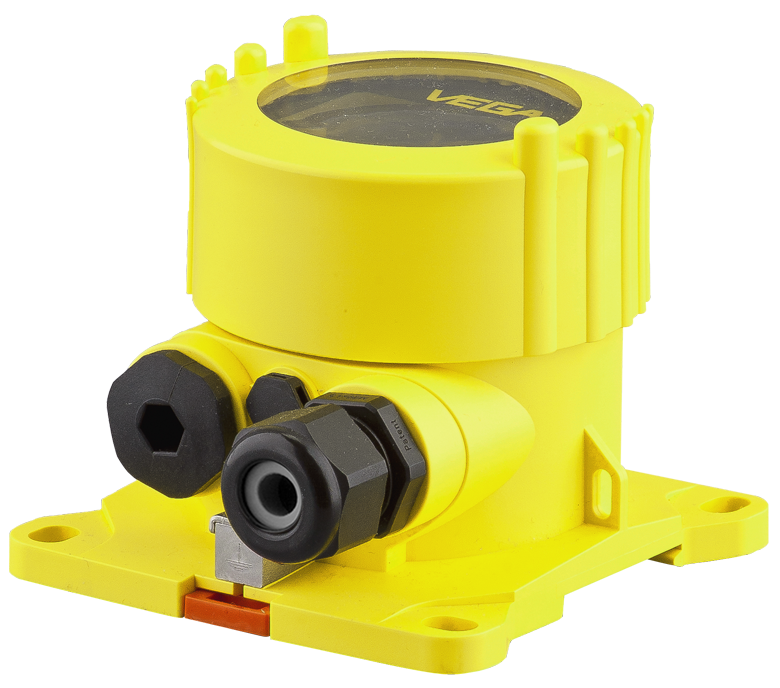

VEGADIS 82
External display and adjustment unit for 4 … 20 mA/HART sensors
External measured value display and adjustment for 4 ... 20 mA/HART sensors
The VEGADIS 82 is suitable for measured value indication and adjustment of 4 … 20 mA sensors with HART protocol. The instrument can be looped in any position directly in the signal cable. It operates as pure display instrument in a 4 … 20 mA current loop.
