Rosemount 8700 Series Magnetic Flowmeter Systems

Update: 2017/11/16      View:
  • Brand:    Rosemount
  • Type:    8700
  • Order Online
Introduction
Industry leading performance with standard
reference accuracy of 0.25% of rate with an
optional High Accuracy of 0.15% of rate.
• Rosemount 8732 Transmitter - Integral-mount
design, backlit display, and explosion-proof
housing. Available with HART®, FOUNDATION™
fieldbus, or Profibus-PA, I.S. Outputs, Device
Diagnostics, and SMART™ Meter Verification to
improve reliability and performance
• Rosemount 8712 HART Transmitter - available
with Device Diagnostics including SMART Meter
Verification to improve reliability and performance.
Quick setup with easy-to-use local operator
interface
• Rosemount 8712H/8707 High-Signal System -
Pulsed DC solutions for the most demanding flow
measurement applications
• Rosemount 8705 Flanged sensor - Fully welded
sensor for maximum protection (standard ISO lay
length)
• Rosemount 8711 Wafer sensor - Economical,
compact, and lightweight sensor, provided with
alignment rings for easy installation
• Rosemount 8721 Hygienic sensor - Specifically
designed for food, beverage, and life sciences

applications

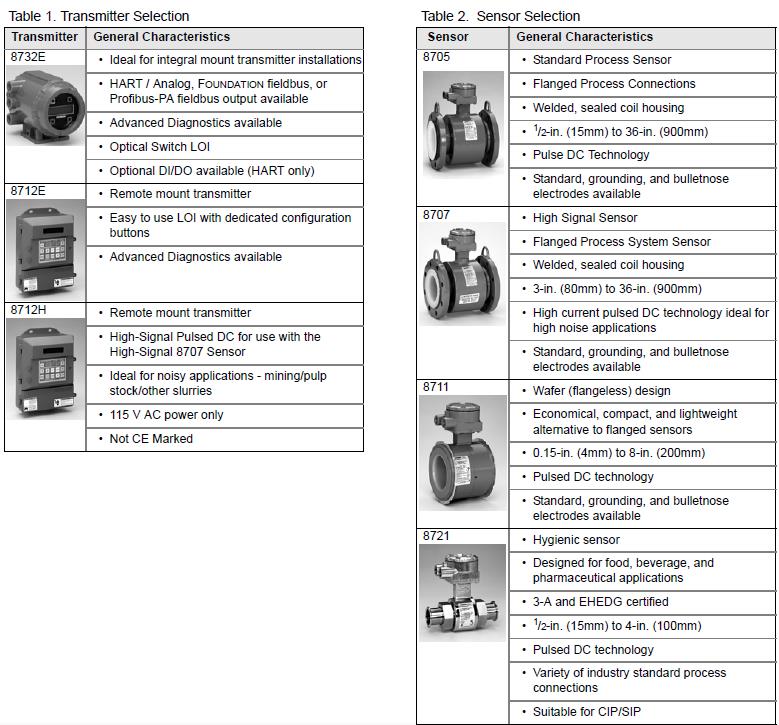

Product Selection Guide
Several sensor types, liner types, electrode materials, electrode types, grounding options, and transmitters are
available for the Rosemount 8700 Series Magnetic Flowmeter System to ensure compatibility with virtually any
application and installation. See Table 18 for information on liner types, Table 19 for information on electrode
materials and electrode types, Table 20 and Table 21 for grounding options and installation, and Table 1 for
transmitter selection. Other material options not mentioned here are available. Contact your local sales
representative for alternative material selection. For further guidance on selecting materials, refer to the Magnetic
Flowmeter Material Selection Guide located on Rosemount.com (Technical Data Sheet Number
00816-0100-3033). For more information regarding product offering and ordering information, refer to “Ordering
Information” on page 6 in this product data sheet.
