PEPPERL+FUCHS Inductive sensor VariKont series

Update: 2016/5/24      View:
  • Brand:    PEPPERL+FUCHS
  • Type:
  • Order Online
Introduction

Properties

 Flexible VariKont housing
 20 mm and 40 mm, non-flush
mountable versions
 AC, 4-wire switching output
 Terminal compartment
Your Benefit

 Sensor head can be aligned in 5 different
positions

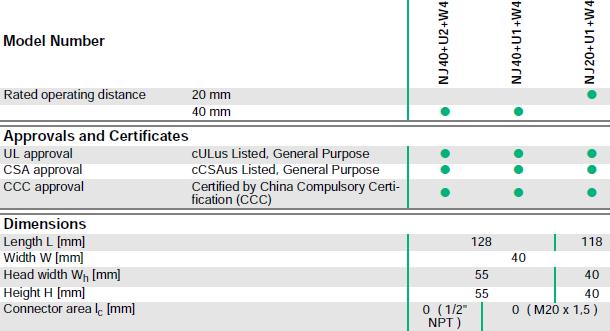

Technical Data
Installation non-flush
Switching element function AC NO/NC
Operating voltage 20 ... 253 V
Switching frequency 0 ... 20 Hz
Operating current 10 ... 500 mA
Indication of the switching state LED green: NC
LED red: NO
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Housing material PBT housing/PBT base
Protection degree IP68
Connection type screw terminals

Accessories

V1-M20-80 Receptacles, M12/M20; plastic version
V1-G 4-pin, M12 female field-attachable connector
V1-W 4-pin, M12 female field-attachable connector
MHW 01 Modular mounting bracket
