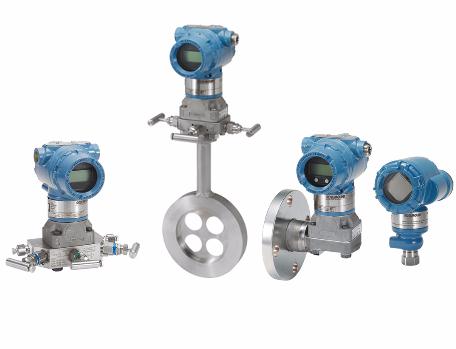

Rosemount 3051T Pressure Transmitter

Update: 2016/5/10      View:
  • Brand:    Rosemount
  • Type:    3051T
  • Order Online
Introduction

The Rosemount 3051T pressure transmitter combines proven sensor and electronics technologies with a single isolator design for absolute and gage pressure measurements from 0.3 to 10,000 psi. The Rosemount 3051T pressure transmitter provides a superior alternative for measuring absolute or gage pressure with the rugged, reliable performance that is characteristic of Rosemount pressure transmitters.

The Rosemount 3051T pressure transmitter utilizes advanced sensor technology to maintain a reference accuracy of 0.065% of span (up to ±0.04% with high accuracy option) resulting in total operating performance, the true measure of "real-world" transmitter performance, of ±0.15%. Additionally, the Rosemount 3051T pressure transmitter has an installed five-year stability of ±0.125% demonstrating the ability to maintain performance over a five year period under the most demanding process conditions. The high accuracy and stability of the Rosemount 3051T pressure transmitter equates to reduced variability, lower operating and maintenance costs, and improved plant safety.

The Rosemount 3051T pressure transmitter is offered with multiple process connections and is ruggedly constructed of high quality materials. A wide range of hazardous area certifications are available. Output options available to the Rosemount 3051T pressure transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus. The Rosemount 3051T pressure transmitter offers so many options that it can be configured for any application.

Required Components
These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Rosemount 3051T Pressure Transmitter Accessories

Rosemount 0304 Conventional Manifold
Rosemount 0304 Conventional Manifold
Rosemount 304 Conventional Manifold Capable of both Traditional and Wafer Style Construction


Rosemount 305 Integral Manifold
Rosemount 305 Integral Manifold
Factory Assembled, leak tested, and calibrated Manifold

Rosemount 0306 Inline Manifold
Rosemount 0306 Inline Manifold
Factory assembled, leak-tested, and calibrated inline manifolds
