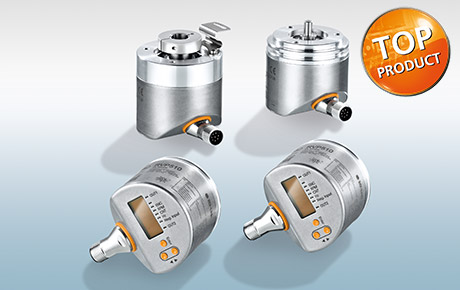

IFM Intelligent incremental encoder with display and IO-Link

Update: 2017/1/26      View:
  • Brand:    IFM
  • Type:
  • Order Online
Introduction

Motion controller: Encoder, speed / direction monitor and counter all in one

  • Resolution of 2...10,000 and signal level (TTL / HTL) freely programmable
  • Display: Two-colour electronic rotatable display of the process values
  • Versatile: M12 connector can be used radially or axially
  • Standard fitting: Solid shaft (clamp /synchro flange) or hollow shaft design
  • Transmission of process and diagnostic data via IO-Link
No compromises
The magnetic sensing principle provides the accuracy of photoelectric encoders and the robustness of magnetic systems.
Simple
Resolution and signal level can be programmed. The encoders have a wide voltage range of 4.5...30 V DC and are therefore suited for universal use.
Multifunctional
Performance Line encoders have an integrated signal evaluation for speed monitoring, counter functions and detection of the direction of rotation.
Intuitive
The encoders provide easy setting, position indication by means of display and operating keys and intuitive menu navigation.
Networked
Diagnostic and parameter data are reliably transferred via IO-Link. Ready for Industry 4.0.

Hollow shaft with integrated stator coupling· 4-digit display · Integrated pulse evaluation

ROP520 - Resolution: 1...10000, Operating voltage [V]: 4.75...30 DC, Connection M12 connector,

Solid shaft · 4-digit display · Integrated pulse evaluation

RUP500 - Resolution: 1...10000, Operating voltage [V]: 4.75...30 DC, Connection M12 connector,
RVP510 - Resolution: 1...10000, Operating voltage [V]: 4.75...30 DC, Connection M12 connector,

Accessories

E30390 - USB IO-Link master, for parameter setting and analysis of units, Supported communication... [more]
E12432 - Jumper, straight / straight, Free from halogen, IP 68, Ambient temperature -25...80... [more]
QA0001 - LINERECORDER SENSOR, Version 4.2, Software for clear online and offline parameter... [more]
E30398 - Memory plug, Parameter memory for IO-Link sensors, Storage capacity: 2 Kbytes, IP... [more]

Connection technology

E12402 - Socket, straight, IP 67, Ambient temperature -25...90 °C, 2 m PUR cable screened,... [more]
E12403 - Socket, straight, IP 67, Ambient temperature -25...90 °C, 5 m PUR cable screened,... [more]
E12404 - Socket, straight, IP 67, Ambient temperature -25...90 °C, 10 m PUR cable screened,... [more]
E12460 - Jumper, straight / straight, Gold-plated contacts, IP 67, Ambient temperature -20...90... [more]
