Fuel Cell, BDS, Paramagnetic, TCD & NDIR

By developing one common software platform that can interface with five different sensing technologies within four common

mounting configurations, Teledyne Analytical Instruments has simplified the process of providing customers with rugged and

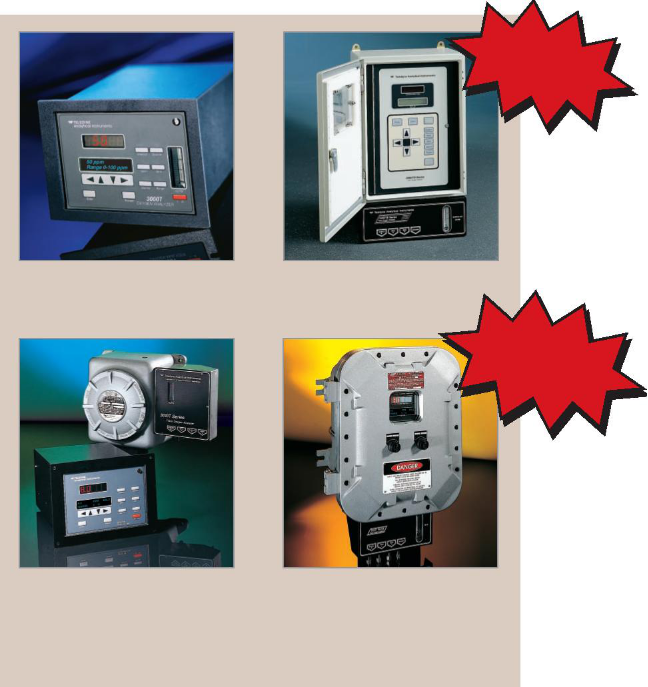

reliable analyzers to meet stringent requirements  across many industries. Fulltech on-line instruments include:

The standard features shared in each  of the above configurations for all 5 sensing methods include:

• Three user programmable ranges

• RS-232C bi-directional serial interface

• 0-1 VDC and 4-20 mADC  outputs

• Auto-ranging

• Range ID contacts

• Auto calibration

Series 3000T & P Electrochemical PPM & Percent Oxygen
Fulltech complete 3000T & 3000P series of microprocessor based trace and percent oxygen
analyzers utilize Teledyne’s advanced Micro-fuel Cell (MFC) electrochemical O2 sensors.
Teledyne’s MFC’s provide users with an easy-to-use, disposable, no maintenance sensor design
that can be freely applied in inert gas streams as well as in pure or gas mixtures containing H2,
hydrocarbons and CO2 for accurate O2 detection from 0-1 ppm up to 0-100%. Teledyne invented
the Micro-fuel Cell O2 sensor and with 40 years of experience with this technology, knows
where it can best be applied.

The InstaTrans uses Teledyne's
latest sensor innovation, Insta
Trace™, which eliminates the
greatest inconvenience
associated with replacing
electrochemical oxygen sensors
at the trace level – the wait. This
innovation can be applied to all
3000 trace series analyzers.
