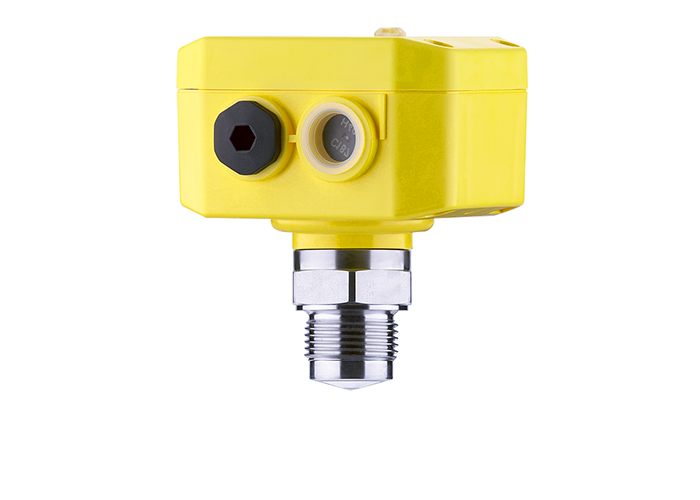

VEGAKON 61 Conductive limit switch

Update: 2016/5/14      View:
  • Brand:    VEGA
  • Type:
  • Order Online
Introduction

VEGAKON 61

Conductive limit switch for liquids for front-flush mounting

  • Optimum cleanability through front-flush mounting
  • Maintenance-free operation through probe insensitive to buildup
  • Time and cost-saving setup without adjustment with medium
Measuring range - Distance
-
Measuring range - Pressure
-
Process temperature
-40 ... 150 °C
Process pressure
-1 ... 25 bar
Version
Compact version
Materials, wetted parts
PTFE
316L
Threaded connection
G1
Hygenic fittings
Cone DN25
Seal material
no media contact
Housing material
Plastic
Protection rating
IP66
Output
Relay (DPDT)
Transistor (NPN/PNP)
Ambient temperature
-40 ... 70 °C
